รายละเอียดสินค้า
Place of Origin: China
ชื่อแบรนด์: LEADYO
ได้รับการรับรอง: UN38.3, CE,MSDS,UKCA
Model Number: AT12V060
เงื่อนไขการชำระเงินและการจัดส่ง
Minimum Order Quantity: 1pcs
ราคา: Negotiable
Packaging Details: UN3480 Standard Export
Delivery Time: 15-45 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online
Supply Ability: 60Mwh
Nominal voltage: |
12.8V |
Nominal capacity: |
60Ah |
Weight: |
8kg |
Dimension: |
L280xW175xH188mm |
Max charge current: |
50A |
Max discharge current: |
100A |
CCA: |
100CCA |
Nominal voltage: |
12.8V |
Nominal capacity: |
60Ah |
Weight: |
8kg |
Dimension: |
L280xW175xH188mm |
Max charge current: |
50A |
Max discharge current: |
100A |
CCA: |
100CCA |

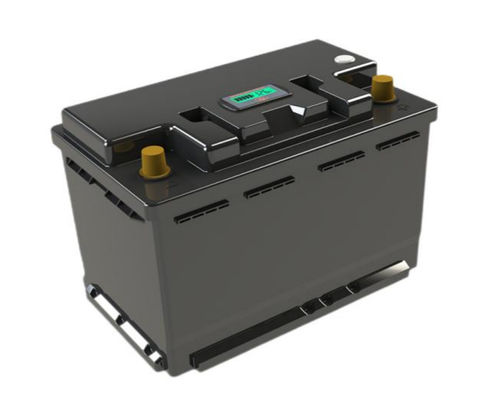

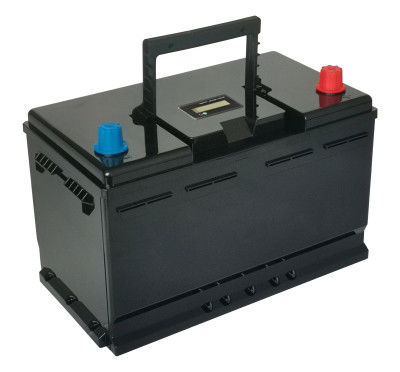

LiFePO4 Starting battery 12V 60Ah 1000A Trolling motor Lithium Battery For boat , vechiles , truck .etc
Brief introductio of Lifepo4 starter battery 12V 80Ah 1200A trolling motor battery
Nominal Voltage 12.8V
Nominal Capacity 60 Ah
Capacity @ 20A 180 min
Energy 768Wh
Resistance ≤30 mΩ @ 50%
SOC Self Discharge <3% / Month
Features of Lifepo4 starter battery 12V 60Ah 1000A trolling motor battery
Specifications of Lifepo4 starter battery 12V 80Ah 1000A trolling motor battery
| ELECTRICAL SPECIFICATIONS | MECHANICAL SPECIFICATIONS | |||
| Nominal Voltage | 12.8V | Terminal Type | M8 | |
| Nominal Capacity | 60Ah | Weight | 8kg | |
| Nominal Energy | 768Wh | Case Dimension(L*W*H) | L280xW175xH188mm | |
| Internal Resistance | ≤30 @50% SOC | Case Type | ABS | |
| Capacity | @20A: 180minutes(3hours) | Cell type / Chemistry | LiFePO4 | |
| Self Discharge | 5% /per month | LCD or Bluetooth Function | Optional | |
| Maximum In Series | NO | BMS:low voltage,high voltage,over temperature, | ||
| Maximum In Parallel | No | Over current,short-circuit protection .etc | ||
| Discharge Current and Voltage Specifications | Charge Current and Voltage Specifications | |||
| MAX Continuous Discharge Current | 100A | Max Charge Current | 50A | |
| CCA | 1000A | Recommended Charge Current | 20A - 50A | |
| Discharge pulse current | 1800±50A (31±10ms) | End of Charge voltage | 14.6V | |
| BMS Low Voltge Cut-off | 10V | End of disCharge voltage | 10V | |
| Short Circuit Protection | 200-800 µs Auto recover or charge release | Balancing Voltage | 3.6V±0.05v pc | |
| Temperature Ranges | COMPLIANCE SPECIFICATIONS | |||
| Discharge Temperature | -20～+65℃ | Certifications | CE for Battery Pack | |
| Charge Temperature | -20～+45℃ | UL1642 & IEC62133 for cells | ||
| Storage Temperature Range | -20～+45℃ | |||
| BMS High Temperature Protection | 90℃ | Shipping classification | UN 3480 | |
| Battery High Temperature Protection | 60℃ | |||
FAQ
Q: Are you trading company or manufacturer?
A: We are Leadyo original factory from shenzhen , China.
Q. Can I print my LOGO on it?
A: YES, LOGO/sticker/OEM/ODM welcomed
Q. Can your battery be wired in series or parallel?
A: YES,YOU can connect up to ANY of these batteries in parallel. For series, suggest up to 48V.
Q. What warranty do I have?
A: Warranty: 3 years, we would provide repair or replacement with the warranty period.
Q: What kind of certificates do you have?
A: We can provide CE,ROHS,FCC,IEC62133,MSDS,UN38.3 etc.
